TPH M-2.6X0.45-W HS

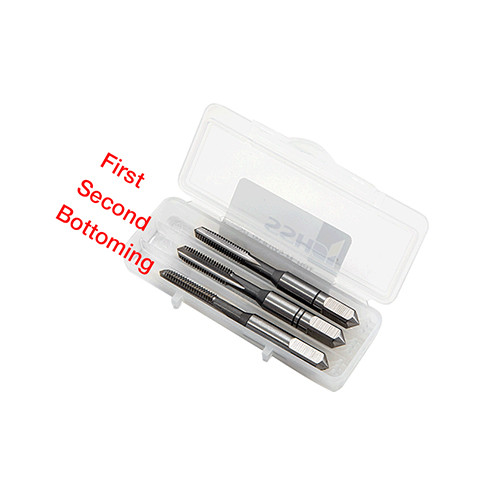

DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation.

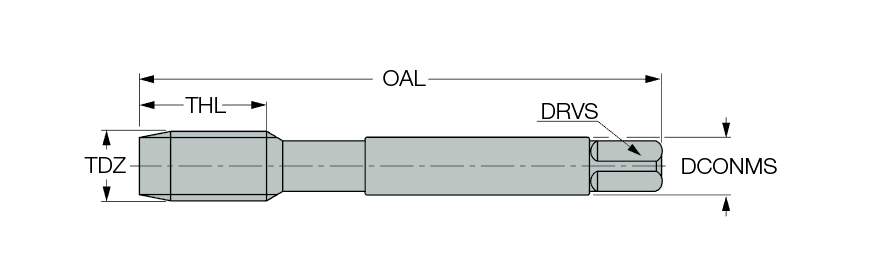

| Thread Diameter Size (TDZ) | M2.6 | Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Thread Standard | THFT | | Coolant Supply Property (CSP) | External |
| Standard | DIN 352 | Flute Count (NOF) | 3 |
| Threads per Inch (TPI) | 64 | Cutting Edge Material | HSS |
| Pitch in mm | 0.45 mm | Quantity | 3 |
| Flute Type | Straight | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | |
| Thread Tolerance Class (TCTR) | H1 | Measurement Type | Inch |
| Style | Straight Flute Hand Tap Set | Series/List # | 114 |
| Tool Type | Hand Taps | Contains | Taper, Plug, Bottoming |
| Flute Length | 3/8″ | Thread Cutting Part Length (THL) | 0.354″ |
| Cutting Direction (HAND) | Right Hand | Grade | HS |
| Coating | Uncoated | Body Material | HSS |
| Overall Length (OAL) | 1.575″ | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | DIN 13 HSS hand tap set for ISO metric coarse threads. The set includes 3 types of taps for the first operation, secondoperation, and bottoming operation. | Country of Origin | Korea |
| Remarks | NOTE: Each set contains 2 or 3 taps |
Shipping Info
Package Weight
0.033
