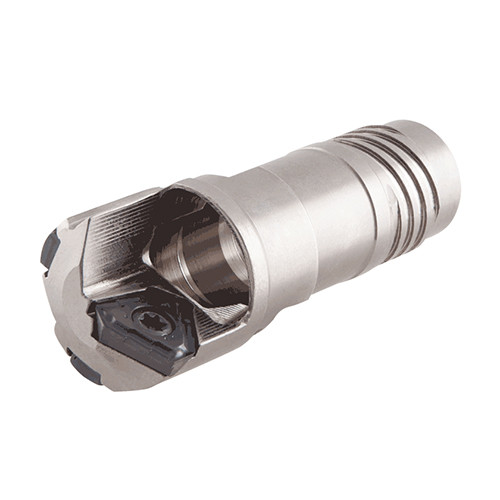

ISD-EF 0.788-0.858-FT

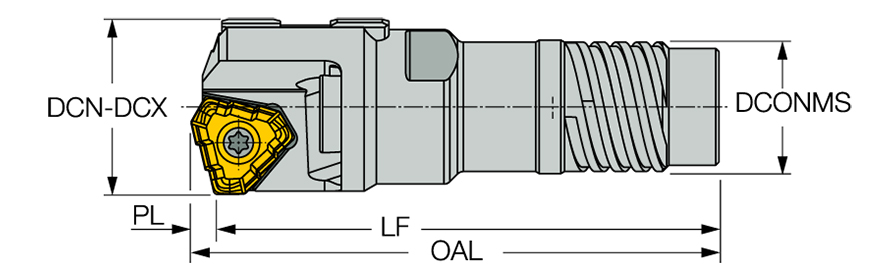

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 0.788″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Cutting Diameter Maximum (DCX) | 0.858″ |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Inch |
| Overall Length (OAL) | 2.488″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Deep single tube drills with external 4-start thread connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed | Country of Origin | Japan |

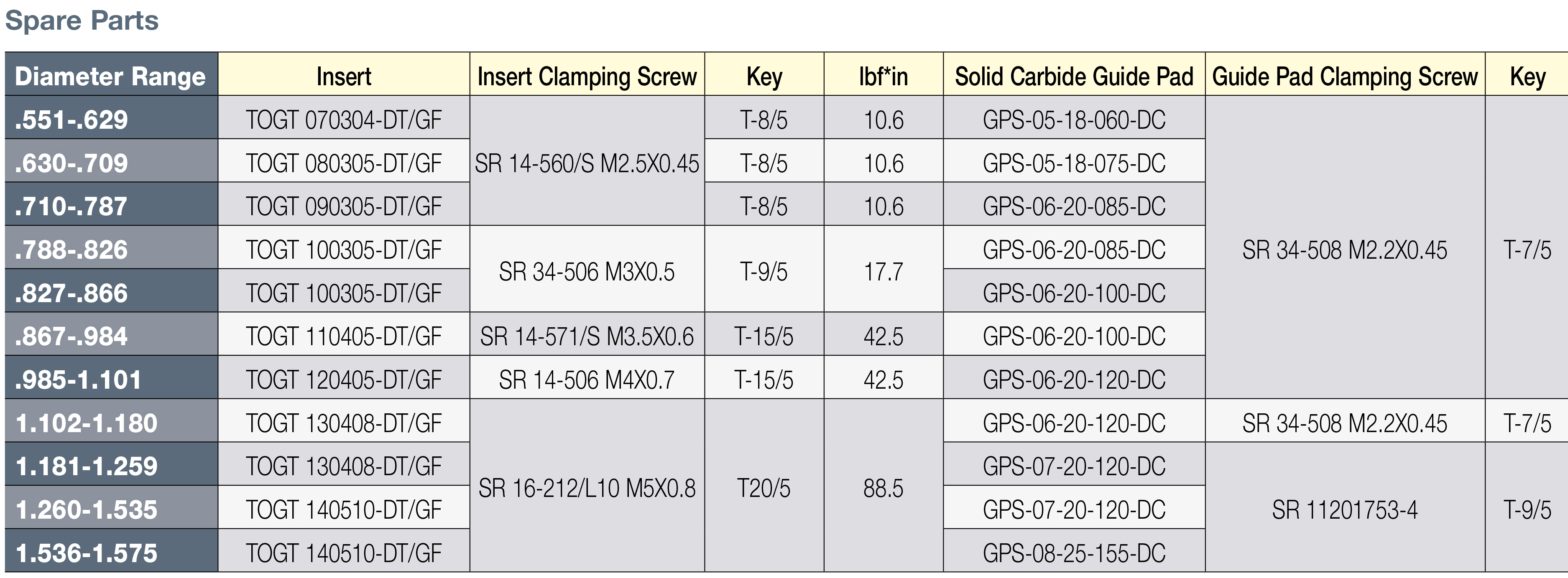

| Remarks | Each item in the attached catalog page represents a diameter range Inserts and guide pads to be ordered separately Ordering example: ISDEF 1.430FT Tube designation: D.551 - .614, External 2-start thread D.615 - 1.575, External 4-start thread For suitable pads and inserts see More Info |
