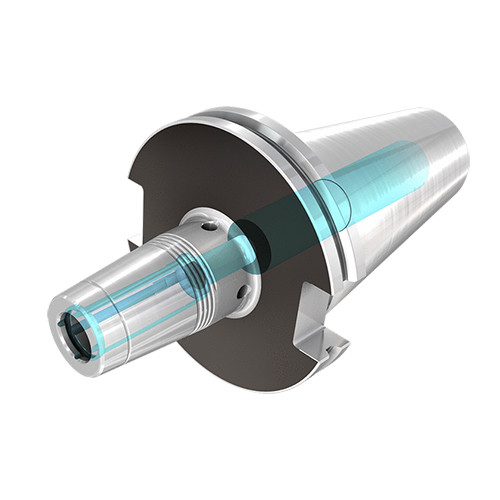

DIN69871 40 SRKIN 14X80CX
Thermal shrink chucks with DIN69871 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance .

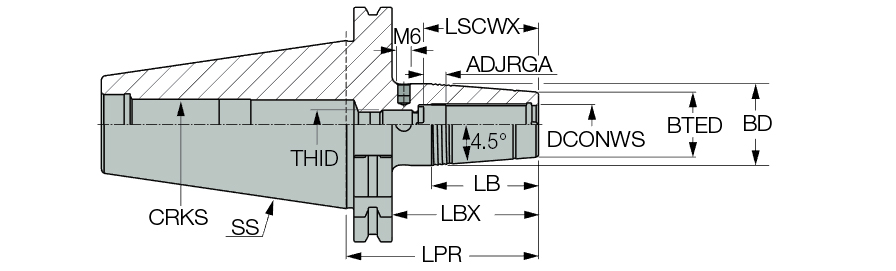

| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Body Length Maximum (LBX) | 60.9 mm |
| Shank Size (SS) | 40 | Clamping Length Workpiece Side (LSCWS) | 44.8 mm |
| Body Length (LB) | 45 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 34 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 27 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with DIN69871 Form AD tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance . | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
2.573
