TCMT 32.51 TM T9225

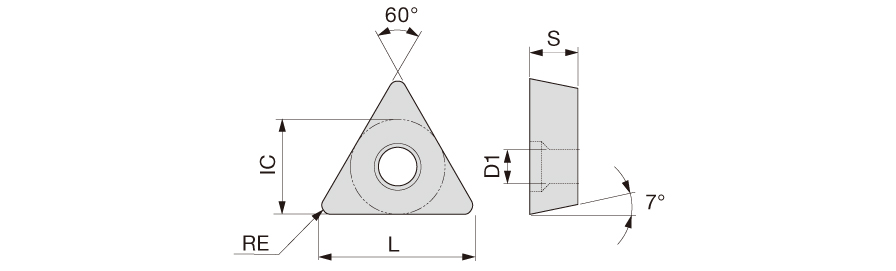

Turning Insert; TCMT 32.51 TM T9225 ; 0.65″ Length ; 3/8″ IC ; 0.016″ Corner Radius ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0098″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0091 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-TM |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.595″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., M class, triangular inserts for finishing to medium cutting | ||
| Country of Origin | JAPAN |
