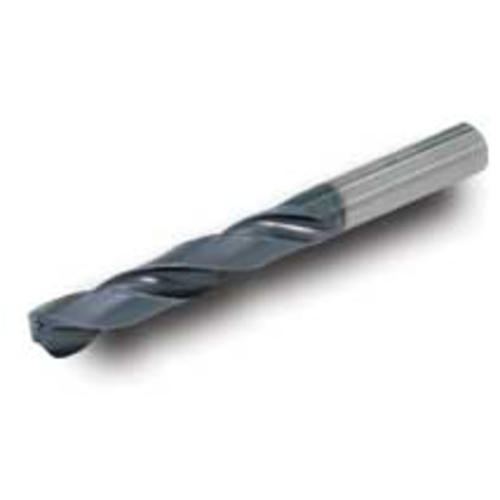

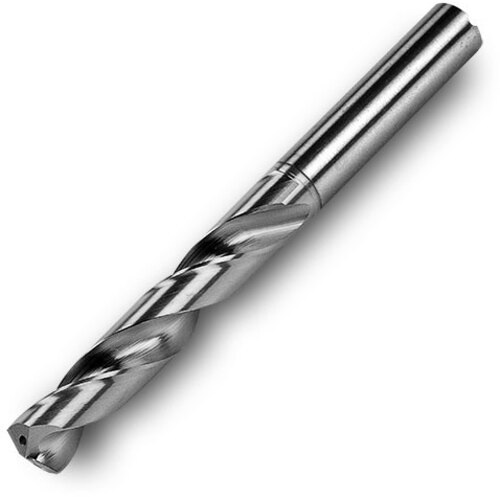

DR1032056T2R01 IN2005
L:D Ratio - 5:1 140° Included Point, 30° Axial Rake Internal Coolant

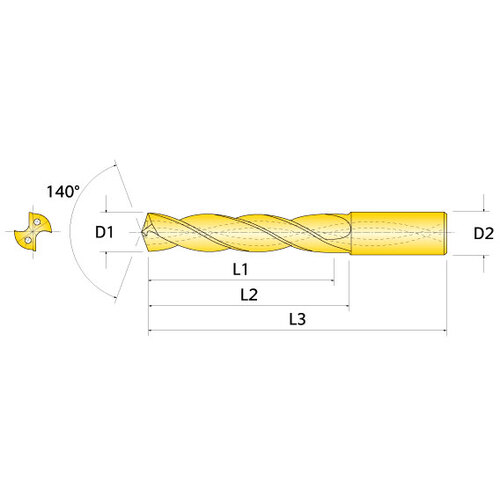

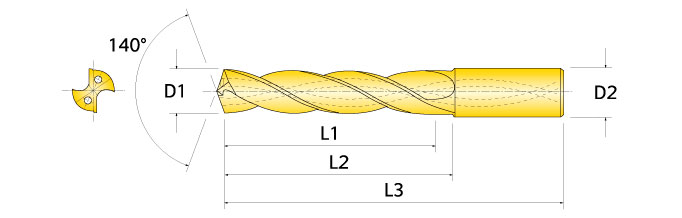

| Drill Bit Size / Cutting Diameter (DC) | 0.406″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.406″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.406″ | Tool Type | Solid Carbide Drills |
| Length Group | Jobber | Grade | IN2005 |
| Coating | TiAlN | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Series/List # | 2464 |
| Application | | Drill Mill | Drilling | | Usable Length (LU) | 2.205″ |
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Length Chip Flute (LCF) | 3.071″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4.646″ |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Cyl | Body Material | Carbide |
Product Features
| Family Description | L:D Ratio - 5:1 140° Included Point, 30° Axial Rake Internal Coolant | ||
| Country of Origin | Usa |
Shipping Info
Package Weight
0.260
