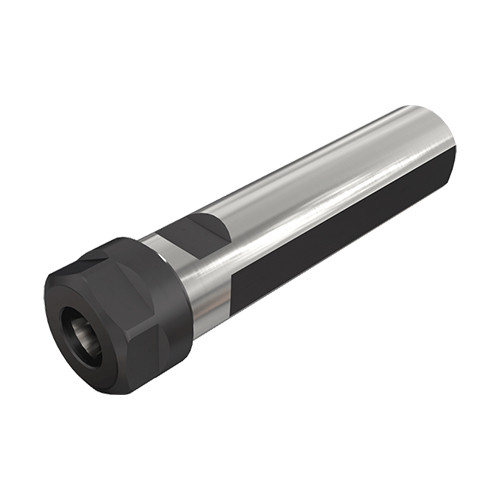

ST1-1/4X2.375 ER32 F
Collet Chuck ; 1-1/4 Shank Size ; ER32 Connection Size ; 1-1/4″ Shank Dia. ; 0.08″ Min. Capacity
| Shank Size (SS) | 1-1/4 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Connection Size (CSI) | ER32 | Figure | 2 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Measurement Type | Inch |
| Tool Type | Cylindrical Shanks | Drive Size (DRVS) | 1.417″ |
| Style | ER32 | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with straight shanks. | Country of Origin | Israel |
| Remarks | F suffix indicates a flat on the shank. |
Shipping Info
Additional Fees and Notes
0
Package Length
5.10000
Package Width
2.40000
Package Height
2.40000
Package Weight
1.446
