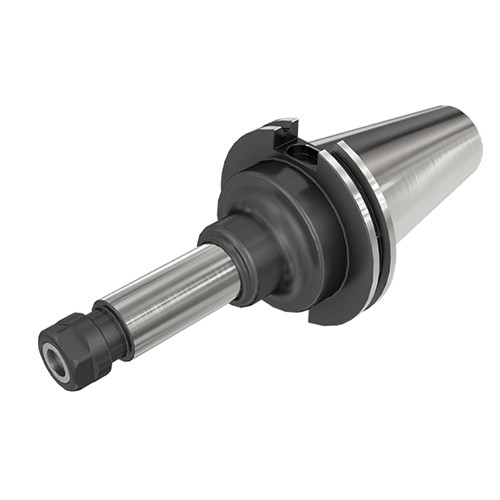

CAT40 ER32X4.000
Collet Chuck ; 40 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 40″ Shank Dia. ; 0.08″ Min. Capacity ; 0.789″ Max. Capacity

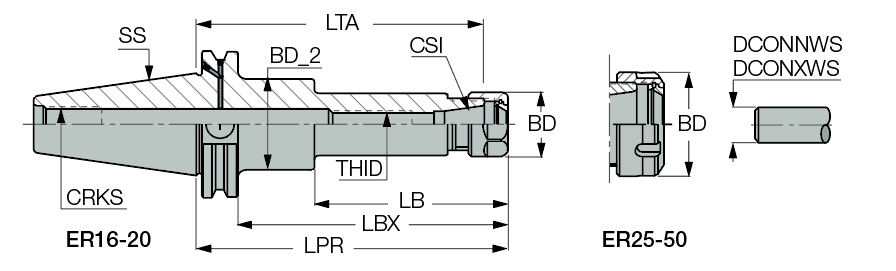

| Shank Size (SS) | 40 | Coolant Supply Property (CSP) | External |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Protruding Length (LPR) | 4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 40″ | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | CAT |
| Style | ER32 |
Product Features

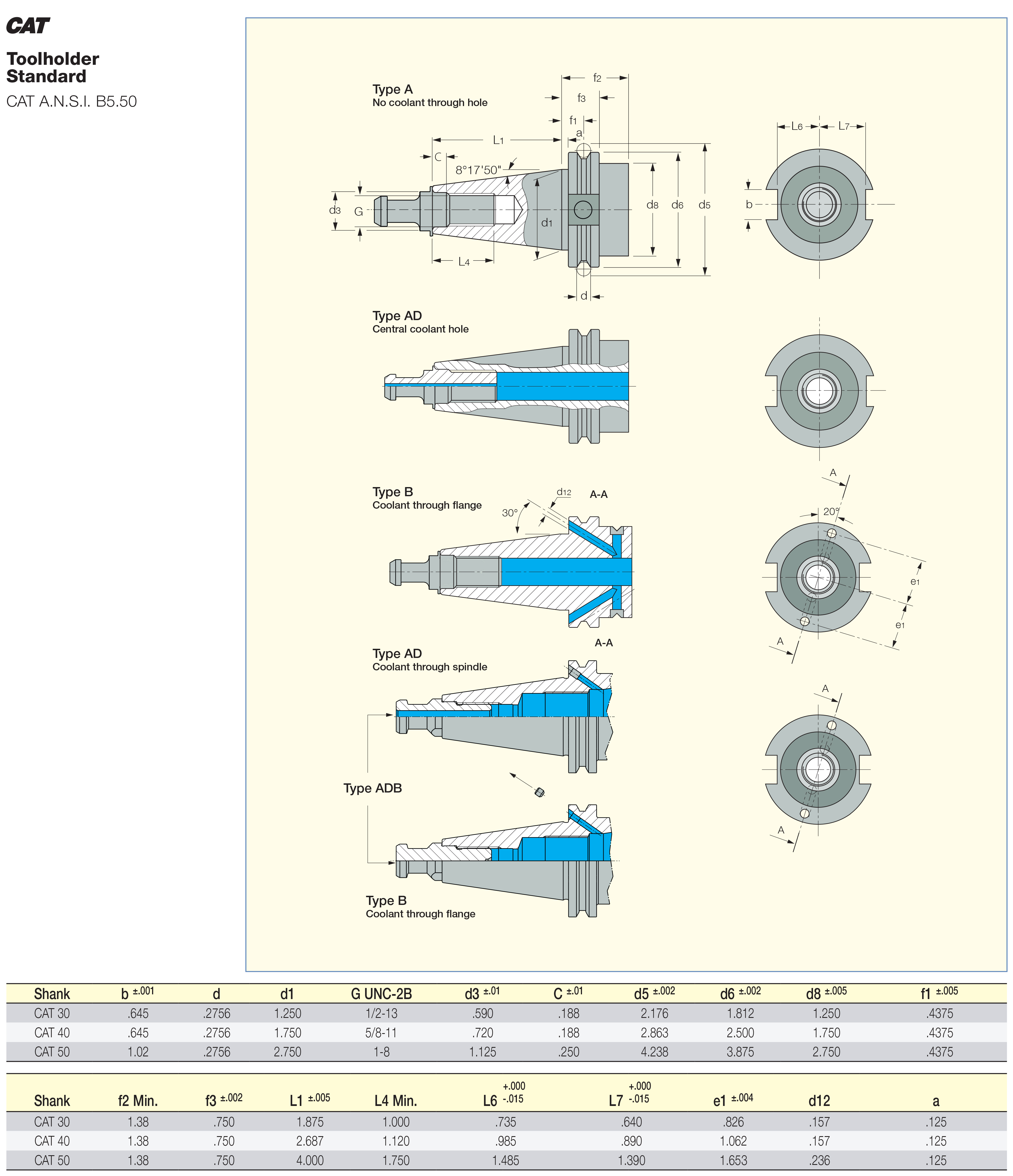

| Family Description | DIN 6499 ER collet chucks with Caterpillar form ADB tapered shanks | Country of Origin | Turkey |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Additional Fees and Notes
0
Package Length
7.00000
Package Width
2.75000
Package Height
2.75000
Package Weight
3.289
